Service / Repair Manual
for International
Model 188 236 282 361 407 429 573 Diesel Engine Fuel Injection Pumps
Covers only
Roosa Master Fuel Injection Pump and Nozzles
for Tractors, Crawler, Loader, Scraper, Hauler, logger & Power Units
188 Series S-7A, S-7B, H-25B & H-25C
236 Series UD-236 H-30A H-30B H-30F H-30R
282 Series UD-282, TD-6 (62 Series) Loader, TD-9 (92), TD-9-B, H-40, H-50, H-50B, H-50C UDT-282, 150 Power Shift Loader and TD-80
301 Series H-60B and D-301
361 Series UD-361, UDT-361, H-65C, E-200, D-361 (Trencher), TD-15 Series B and 175 Loader
407 Series TD-15 Series B & 175 Series B, E-200, E-211, H-65C, S-11, UD-407, UDT-407, D-407 and DT-407
429 Series TD-20 Series B and 250, 250 Series B, H-70F, H-70C, H-80 & UDT-429
573 Series 270 and E-270, Scraper, 65B Payhauler, UDT-573, H-90C, H-90E, H-90D, PH-65B & D-90C
817 Series TD-25 Series B, 295,495, 295 Series B, 95 (952), 100, UDT-817, TD-30, H-120B, H120C, TD-25(250 Series), MDT-817, H-100A, PH-65, UD-817 & H-100B
with

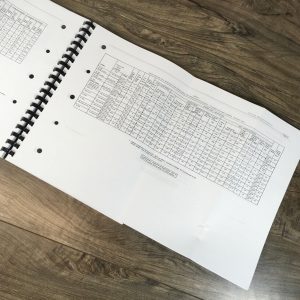

Foldout Schematics
This comprehensive manual has
230 pages

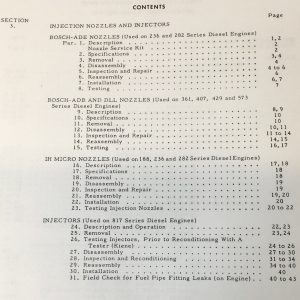

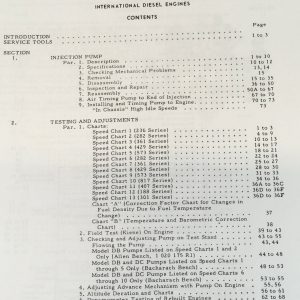

For the Complete Table of Contents

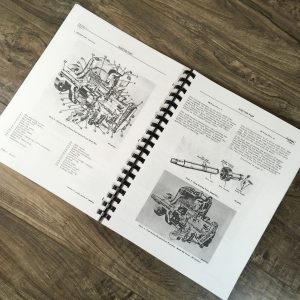

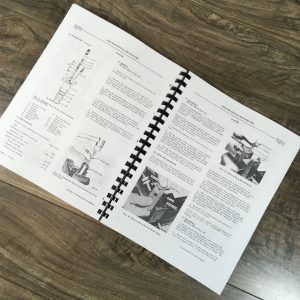

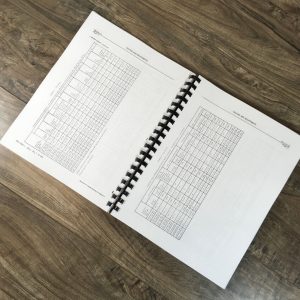

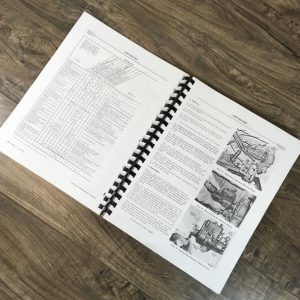

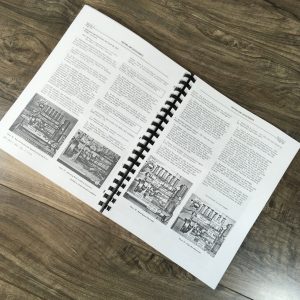

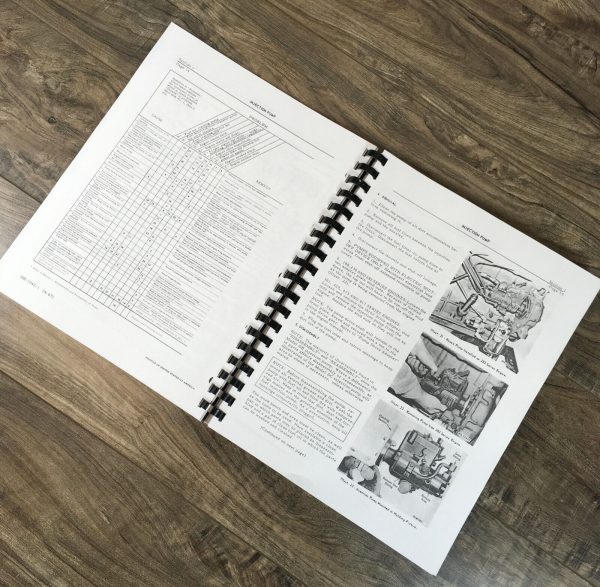

See the listing pictures
This manual shows you how to
Troubleshoot, Repair and Overhaul components

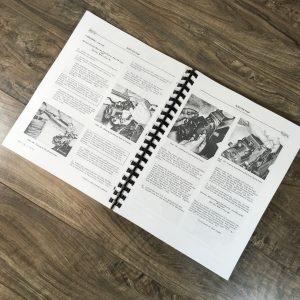

This Service Manual is a New Print of the
Original Equipment Manufacturers (OEM) Manual
Orders placed before Noon Central Time
generally get shipped the same day!
Our Manuals Help You Keep Things Working
Thank You For Your Business!
